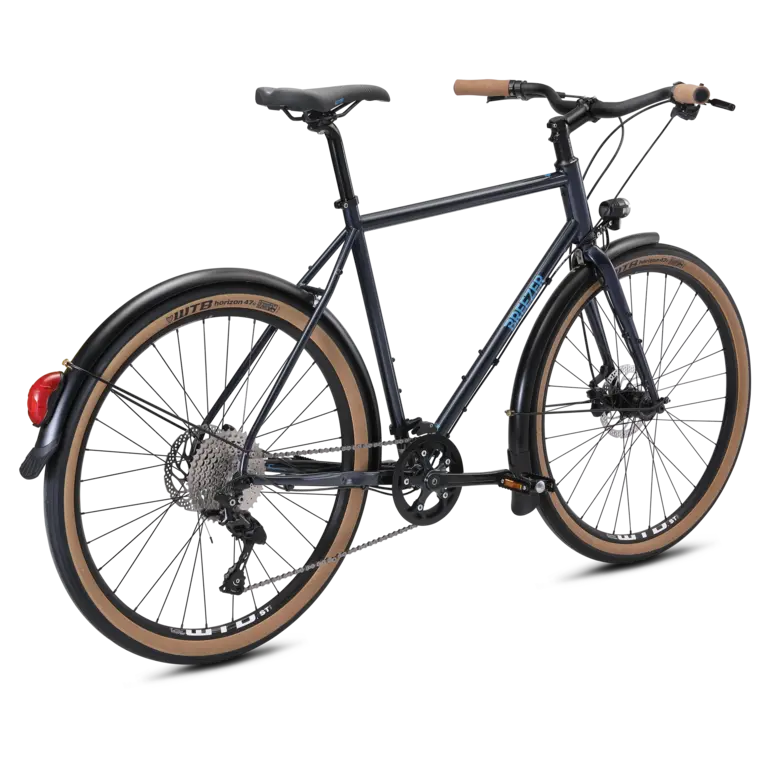

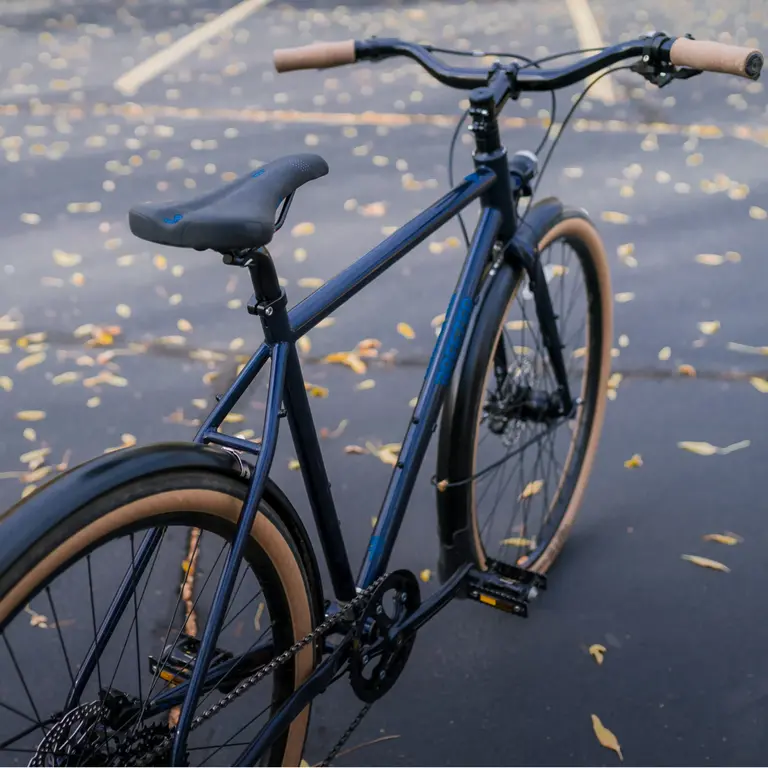

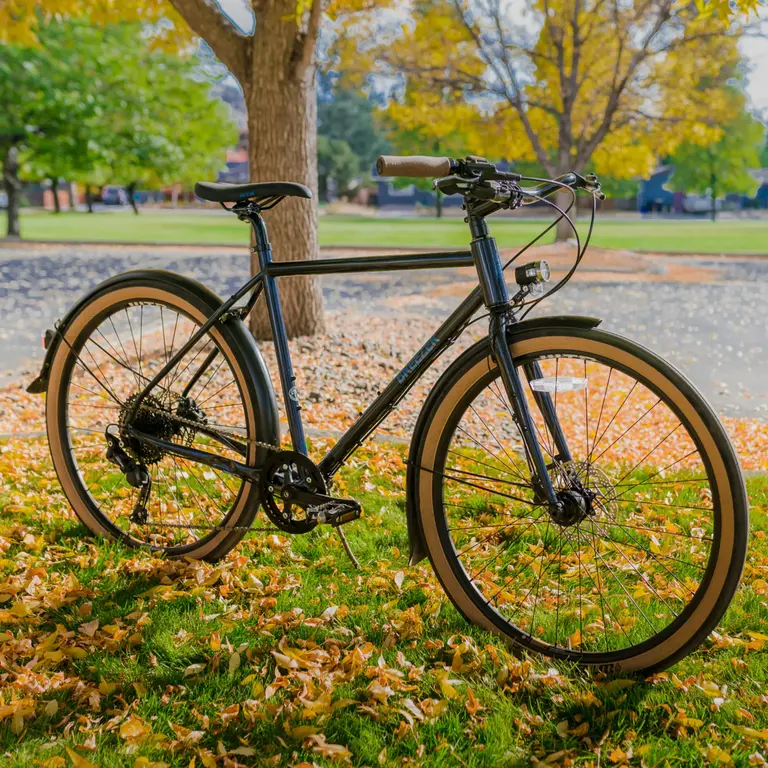

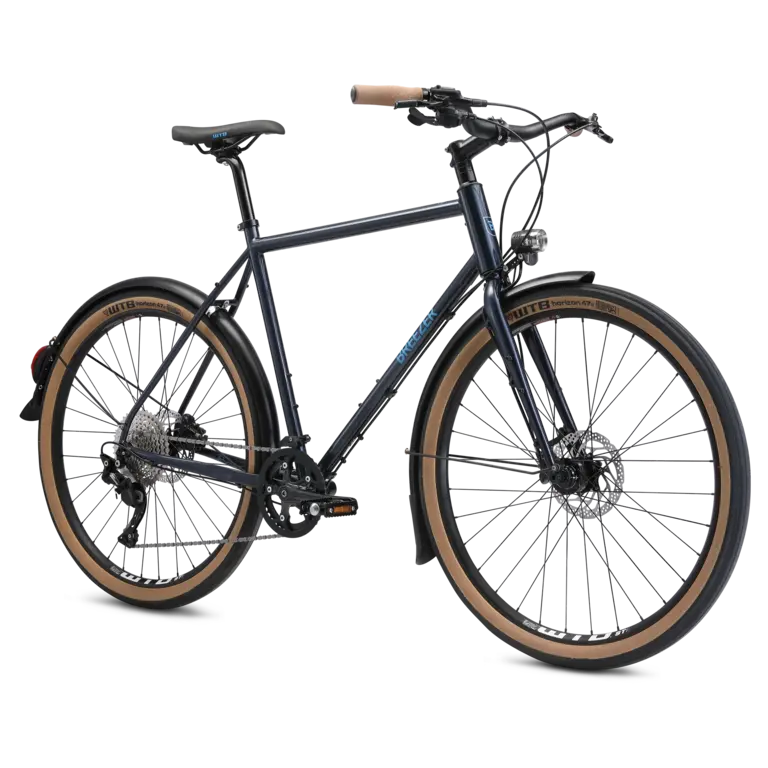

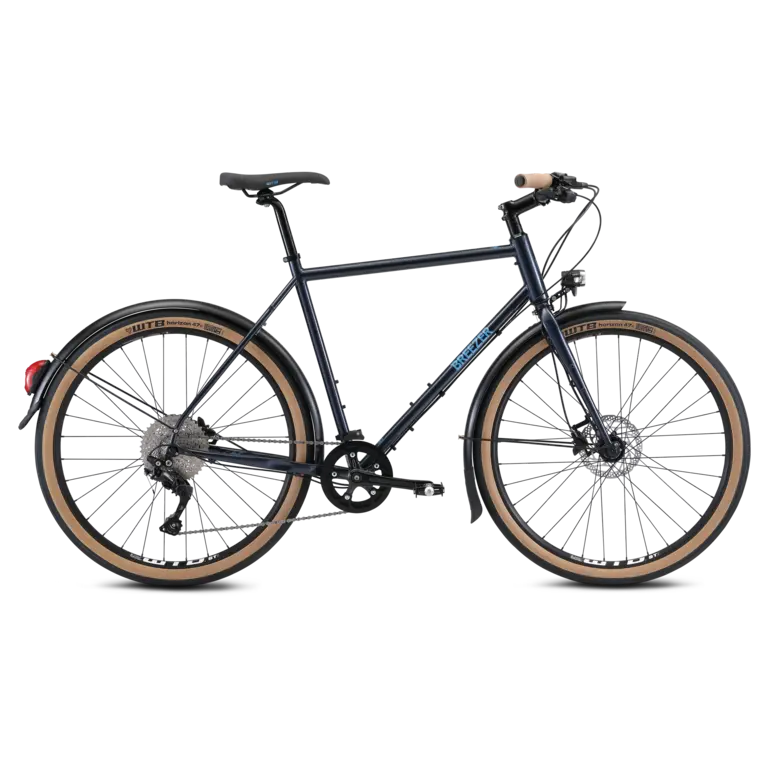

• Breezer classic touring geometry
• Butted chromoly tubing, with English threaded bottom bracket
• Thru-axle fork with bottle, fender, and rack mounts
• Tubeless-compatible 650b wheelset
• Tire Clearance: 650bx47mm
Engineered with Compact Geometry
Joe's compact geometry allows riders to enjoy greater standover clearance for navigating technical terrain, shave weight off the frame, and allow for a wider range of adjustability for riders of different sizes.
Equipped with Multiple Mounts
Designed to be customized for your adventure Breezer's multi-mount technology allows options for waterbottle cages, racks, and fenders.
Equipped with Breeze-In Dropouts
The iconic Breeze-in dropouts create increased strength and ridigity in the rear triangle and offers a lighter weight alternative to standard dropouts.
Made with Breezer Steel
The staple material for most Breezer bikes, Breezer Steel 4130 Chromo offers incredible durability, excellent shock-absorbing qualities, and fully-butted tube walls for reduced weight.
Specifications
| SIZES | Semi-Compact: 49cm, 52cm, 54cm, 56cm, 58cm, 60cm |
| COLOR(S) | Deep blue |
| FRAME | Breezer butted-chromoly steel, 44mm headtube, BSA Threaded BB, 142 x 12mm |
| FORK | Chromoly disc, 1 1/8", rack / fender & side bottle mounts, 100 x 12mm through-axle |
| CRANKSET | Forged 1X, 40T |
| BOTTOM BRACKET | Sealed-bearing, BSA |
| PEDALS | N/A |
| FRONT DERAILLEUR | N/A |
| REAR DERAILLEUR | Shimano Deore, long cage, shadow plus OR microSHIFT XLE |
| SHIFTERS | Shimano Deore OR microSHIFT XLE Xpress, 10-speed |
| CASSETTE | Shimano Deore OR microSHIFT CS-H103A, 11-42T, 10-speed |
| CHAIN | Shimano HG54 |
| WHEELSET | 650B WTB STi23 disc, tubeless compatible, 100 x 12 sealed-bearing KT front dynamo hub, 14g SS spokes, 32H |
| TIRES | WTB Horizon, 650 x 47c, wire bead |
| BRAKESET | Shimano MT200 OR C-STAR Rush hydraulic disc, 160mm rotor |
| BRAKE LEVERS | Shimano MT201 OR C-STAR Rush alloy |
| HEADSET | FSA 1 1/8", No.10 internal, 36° ACB-sealed, 6.5mm aluminum top cover |
| HANDLEBAR | Breezer Sweeper Bar, 680mm width, 25° backweep |
| STEM | Breezer B-Road, 3D-forged 6061 stem body, +/-7° |
| GRIPS | Selle San Marco Presa XC |
| SADDLE | Selle San Marco Monza Full Start Up |
| SEATPOST | Breezer, 6061 alloy, 27.2mm diameter |
| FENDERS | Alloy fenders w/ struts |
| HEADLIGHT | Spanninga Axendo 40, dynamo powered |

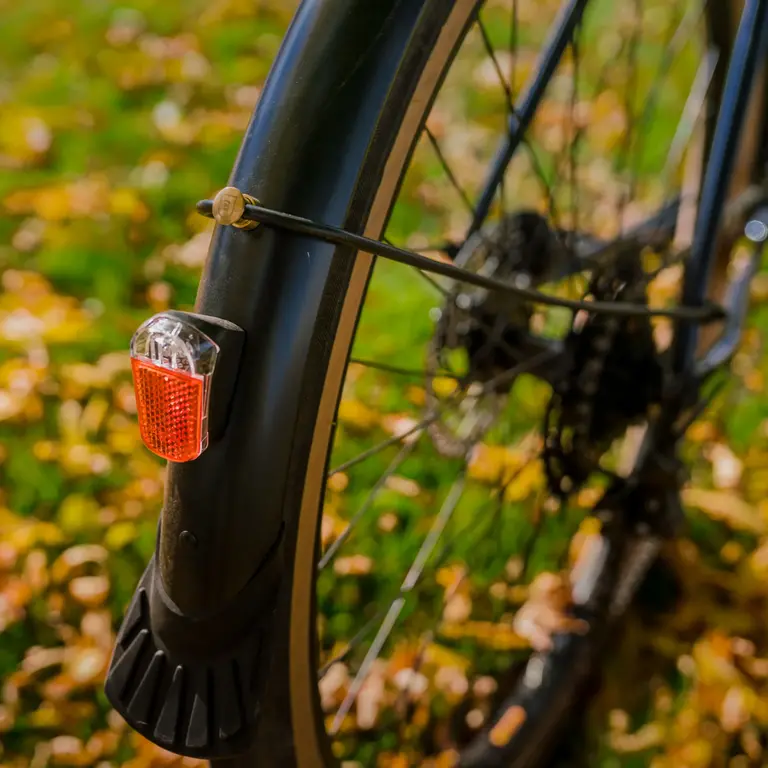

| TAILLIGHT | Spanninga Presto RL15 XB |
| WEIGHT | tbd |
Due to COVID related supply chain issues component specification could change at any time without notice.
Geometry
| SIZE(SEMI-COMPACT FRAME) | XS | S | M | L | XL | XXL | |||||
| BIKE SIZE(SEMI-COMPACT FRAME) | 49cm | 52cm | 54cm | 56cm | 58cm | 60cm | |||||
| A | SEAT TUBE, CENTER TO TOP | 49 | 52 | 54 | 56 | 58 | 60 | ||||
| C | TOP TUBE, EFFECTIVE | 518 | 545 | 560 | 570 | 585 | 600 | ||||
| D | HEAD TUBE LENGTH | 100 | 120 | 145 | 160 | 175 | 190 | ||||
| E | SEAT TUBE ANGLE | 75° | 74° | 73° | 73° | 72.5° | 72° | ||||
| G | HEAD TUBE ANGLE | 68° | 70° | 70° | 70° | 71.5° | 72° | ||||
| H | CHAINSTAY LENGTH | 450 | 450 | 450 | 450 | 450 | 450 | ||||
| I | WHEELBASE | 1058 | 1059 | 1067 | 1078 | 1070 | 1078 | ||||
| J | BOTTOM BRACKET DROP | 68 | 68 | 65 | 65 | 62 | 62 | ||||
| K | FORK OFFSET | 50 | 50 | 50 | 50 | 50 | 50 | ||||
| M | STACK | 504 | 528.9 | 551.7 | 565.7 | 575.5 | 592.7 | ||||
| N | REACH | 375 | 383 | 386 | 393 | 400 | 407 | ||||
| O | STANDOVER | na | na | na | na | na | na | ||||
| STEM MM | 80 | 90 | 100 | 110 | 110 | 120 | |||||
| HANDLEBAR WIDTH CM | 40 | 42 | 44 | 46 | 46 | 46 | |||||
| CRANK MM | 170 | 172.5 | 172.5 | 175 | 175 | 175 | |||||
| WHEEL SIZE | 650b | 650b | 650b | 650b | 650b | 650b | |||||
| SEAT POST DIAMETER MM | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
